VEVOR Traditional 3 Gal Stainless Steel Vacuum Degassing Chamber Kit 3CFM Vacuum Pump, QCKTZKB3JLBXGT3CFV1

VEVOR 3 Gal Stainless Steel Vacuum Degassing Chamber Kit 3CFM Vacuum Pump, QCKTZKB3JLBXGT3CFV1, 840349908168

3 CFM Vacuum Pump

1/4 HP Power & 5 PA Supreme Vacuum & 3 Gallon

Our heavy-duty vacuum chamber is perfect for removing gases from compounds which have become entrapped in the mixture when mixing components. Vacuum chambers are required to assure a bubble-free mold when mixing resin and silicone rubbers and slower setting resins. Our vacuum chamber greatly reduces gas bubbles and pockets that would weaken the epoxy or silicone.

• Please note: The oil is not included. There is residual oil from the factory inspection, if it leaks due to the packaging upside down, it will not influence the utilize.
• Robust Vacuum Pump
• Luxury Vacuum Chamber
• Easy Tracking & Cooling
• Functional Accessories

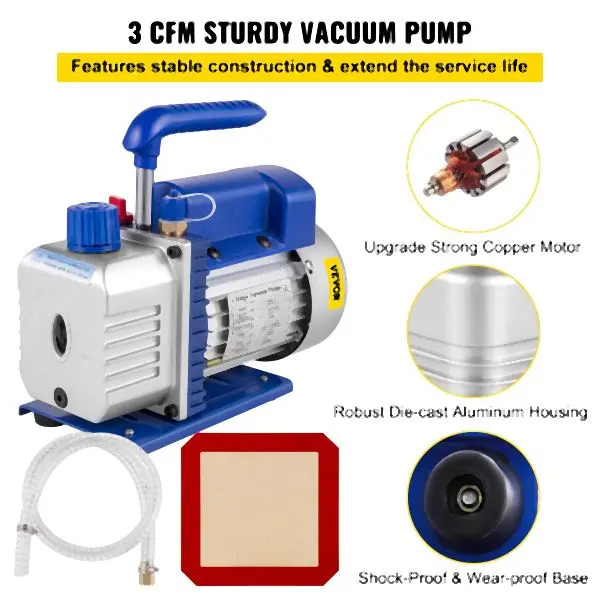

• Copper Motor & Aluminum Body: The vacuum pump base is built with a heavy-duty aluminum alloy shell and copper wire motor, sturdy and stable; four rubber soles boost the vacuum pump’s stability, and non-slip rubber feet ensure minimal movement.
• Low Noise Vacuum Chamber: With two silencers, it can reduce vibration and noise, and it runs more quietly. A high-quality vacuum chamber can withstand up to 160ºF. The glycerin-filled gauge can keep the meter accurate to within 0.5inHg.

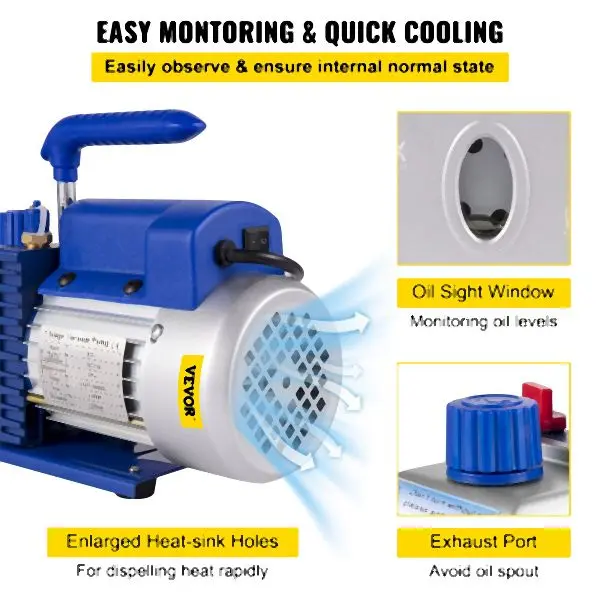

• Easy Tracking & Cooling: This rotary vane vacuum pump comes equipped with an oil sight glass to monitor oil levels and quality, avoid oil deficiency. The built-in cooling fan and formatted heat dissipation window design can rapidly dissipate heat and effectively protect the machine.

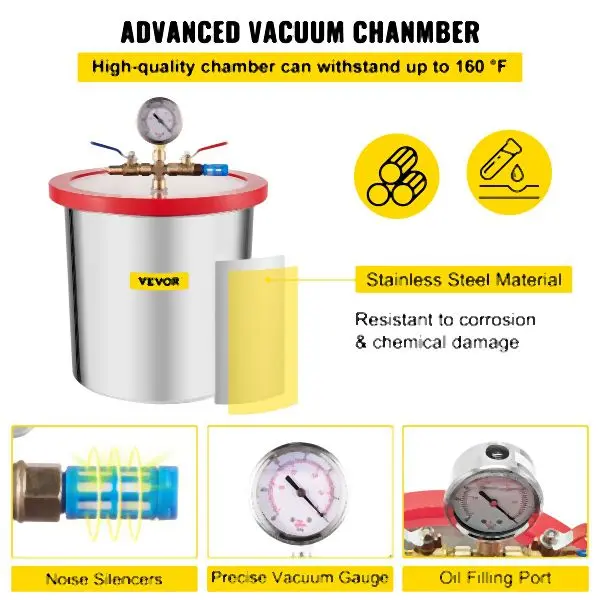

• Stainless Steel Material: This vacuum chamber is made of high strength stainless steel with One-piece molding, very durable, and can withstand up to 160ºF, keep the vacuum for a long time. Substantiate vacuum level down to 29.9″ Hg.
• Standard Accessories: Bulletproof acrylic crystal lid assists you to see the inside clearly. And the two-sided flippable vacuum ginquireet for better durability and reliability. Long-lasting brass fittings on the chamber fit all vacuum pump ports. Constructed-in steel wire, the hose is more durable.

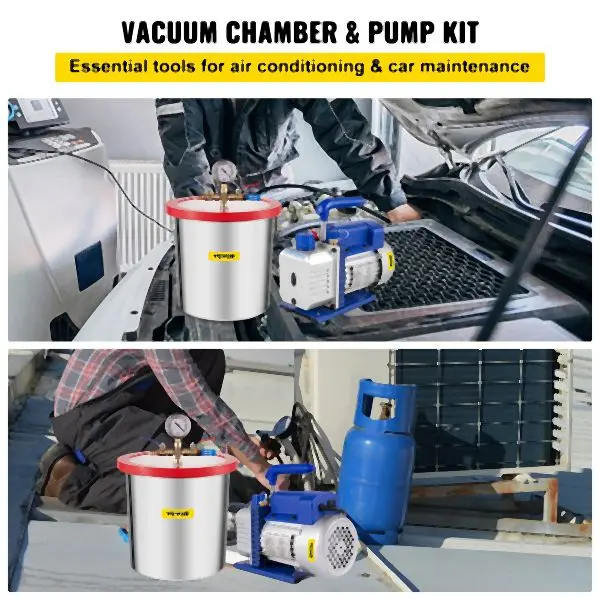

• Various Application: The 3CFM 1/4HP vacuum pump and the 3-gallon chamber are suitable for houtilizehold air situationing, automobile maintenance, vacuum packaging, refrigerator vacuum, Industry, etc.

Package Content

• 1 x 3 Gallon Vacuum Chamber
• 1 x 3/4″ Acrylic Lid
• 1 x Heat Treated Silicone Lid Ginquireet
• 1 x Glycerin Filled Gauge with Brass Fittings
• 1 x 50 Micron Air Filter
• 1 x Non-Stick Silicone Pad
• 1 x 5 Foot Steel Wire Collapse-Proof Hose
• 1 x Instruction Manual
• 1 x 1/4HP 3CFM Single Stage Vacuum Pump

Technical specs

• Ultimate Vacuum: 5PA-0.05Mbar
• Power (HP): 1/4
• Free Air Displacement: 3CFM
• Silicone Pad Size: 4-3/4″ x 4-3/4″
• Vacuum Chamber: 9″ x 10.6″ / 23 x 27 cm
• Oil Capacity: 200ml
• Gauge Style: Gylcerin Filled
• Hose Connector: 1/4″ SAE w/ 45o Seat
• Chamber Max Temp: 160oF
• Voltage: 110V 60HZ
• Maximum Rated Vacuum: 29.9inHg @ sea level / 24.82 @ 5000ft
• Micro Rating: 75 Microns (10pa)
• Pump Speed: 1720 RPM
