VEVOR Horizontal Pneumatic Liquid Filling Machine 10-300ML, Paste Liquid Filling Machine with 30L Hopper, GZJ10-300MLGTQDZHV1

VEVOR Horizontal Pneumatic Liquid Filling Machine 10-300ML, Paste Liquid Filling Machine with 30L Hopper, GZJ10-300MLGTQDZHV1, 617201467725

Paste Filling Machine 10-300ML Volume

Here is a list about our pneumatic filling machine for paste with a 30L hopper, suitable for all liquid and paste without particles, widely utilized in fields of daily chemistry, food and beverage, pharmacy and so on. Note: You should organize the air compressor for yourself.

• No Dripping Paste Filling
• Arbitrarily Regulationlable Process
• Stainless Steel Construction 10-300ML
• Cutting-edge Air Pressure Gauge

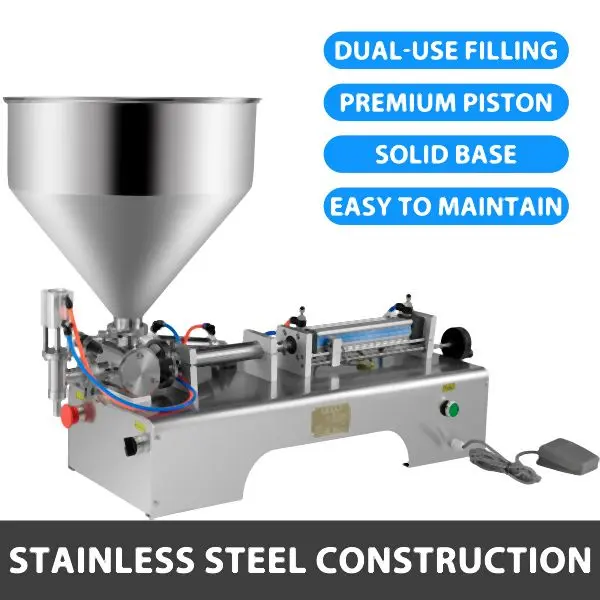

• Stainless Steel Construction 10-300ml: Large Capacity: 10-300ml. Material of this dual-utilize paste and liquid filling bottle machine is mainly food-grade stainless steel. Piston is made of teflon materials. Removable buckles create the lotion filling machine simple to maintain.

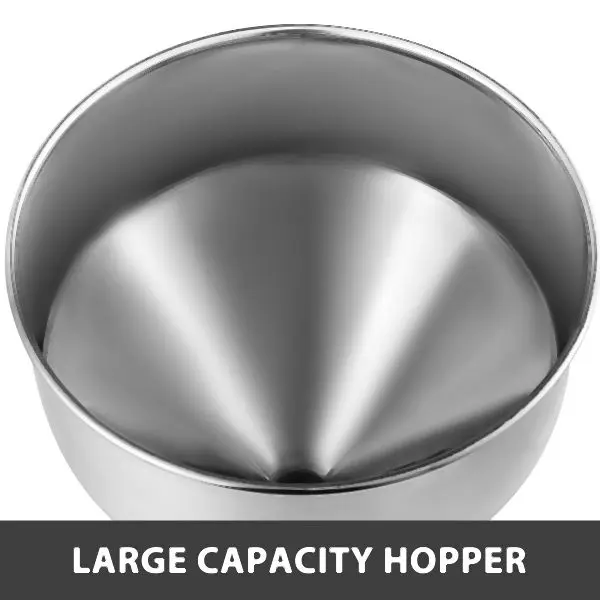

• Large Capacity Hopper: 30L hopper allows the filler continuously work efficiently. Made of stainless steel, food-grade material, with a perfect surface treatment, the hopper is worthy to be utilized. Work well with this piston filling machine.

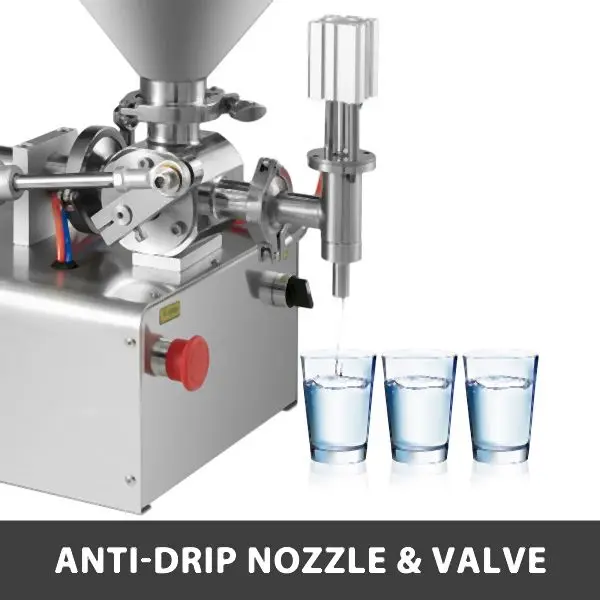

• Anti-drip Nozzle & Rotary Valve: Outlet nozzle is anti-drip, simple to be removed and replaced. Rotary valve controls the transfer process of paste material. Not easily plugged and no dripping. The manual liquid filling machine ensures accurate filling.

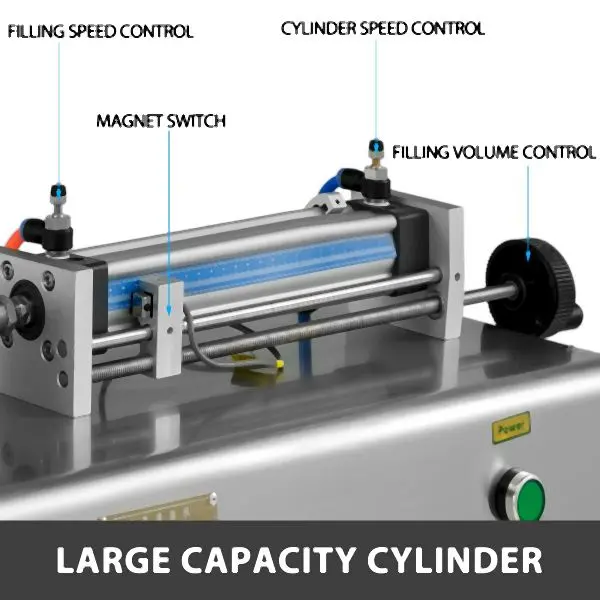

• Adjustable Speed & Volume: With a great power and stable air pressure, the air cylinder backs the filling process well. Blue button controls the working speed of cylinder, orange one for filling speed. Filling volume is adjustable through swing handle.
• Air Pressure Gauge & Switch: Equipped with an developd air pressure gauge, the machine works well and keeps a good operation with air compressor(not offered). Substantiate manual/automatic model, emergency stop with safe cut-out device.
• Wide Application: This semi auto filling machine is designed for doing filling of paste and liquids. It can assist you to fill a mount of quantitative paste, liquid as well, in the fields of daily chemistry, food and beverage, pharmacy and so on.

Package Content

• 1 x 10-300ml paste filling machine
• 1 x 30 L hopper
• 1 x Piezometer
• 6 x Screwdriver
• 1 x Foot Pedal
• 5 x Spacer Sheet
• 1 x Power Cord
• 1 x Kit of accessories

Technical specs

• Head: Single Head
• Total Size: 36.2 x 14.6 x 26.4in/92 x 37 x 67cm
• Voltage: 110V/60Hz
• Air Pressure: 58-87psi/0.4-0.6MP
• Filling volume: 10-300ml
• Material: Stainless Steel
• Filling Accuracy: ±1%
• Application Temperature: Max 104°F/40°C
• Filling Speed: 10-20 bottles/min
• Hopper Volume: 30L / 7gal
