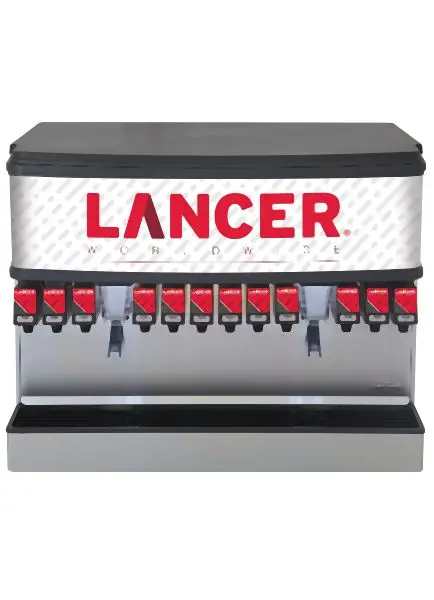

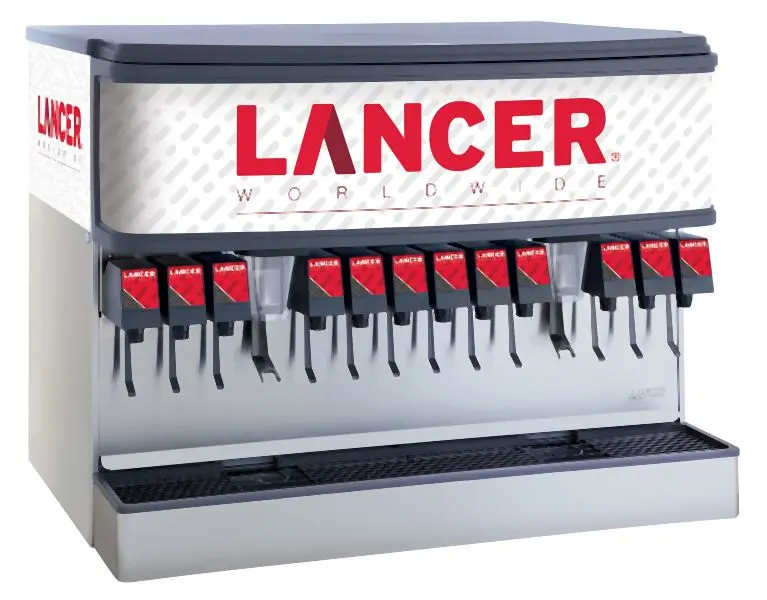

Lancer Versatile Self-Serve Dispenser Ibd 44 12Levss, 85-4562H-111-GB

Lancer Self-Serve Dispenser Ibd 44 12Levss, 85-4562H-111-GB

The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed syrup and water lines deliver excellent icy cold drinks. Multi-functional valve configurations and a portion control choice allow for simple beverage cost monitoring. Topped with a compelling wraparound display, the IBD is a favorite of our customers. Industry standard platforms in 44” width – 12 valve, lever or push button dispensing versatility

• Illuminated interalterable front graphics, 2 standard fluorescent 30 watt light bulbs
• High capacity ice storage bin
• High capacity drip tray to handle customer ice and beverage overfill assists avoid safety hazards and drink station cleanup from spills
• One-of-a-kind hex drive ice agitation and dispense drive system for trouble free operation and long service life
• Stainless steel buildion; exterior and interior
• Fully insulated storage bin and drip tray controls condensation and assists avoid moisture related safety hazards
• Plumbing access front and rear for installation flexibility

Technical specs

• Height: 35.375” (899 mm)
• Height with riser40.625” (1032 mm)
• Width: 44” (1118 mm)
• Depth: 30.5” (775 mm) including tray
• space required
• Width: 46” (1168 mm)
• Depth: 31.5” (800.1 mm)
• Height: Allow sufficient clearance for
• manually filling with ice or refer to ice maker
• recommendation for top clearance.
• Electrical: 115V/60Hz
• 230V/50Hz
• Weight with Ice: 760 lbs (345 kg)
• ice capacity: 360 lbs (163 kg)
• Dispensable: 300 lbs (136 kg)
• Fittings: Soda Inlets: 3/8” (9.5mm) male barb
• Syrup Inlets: 3/8” (9.5mm) male barb
• VALVESLEV® other valves available upon request
• Flex manifold configuration: 3-2-1-1-2-3
• key lock switch
