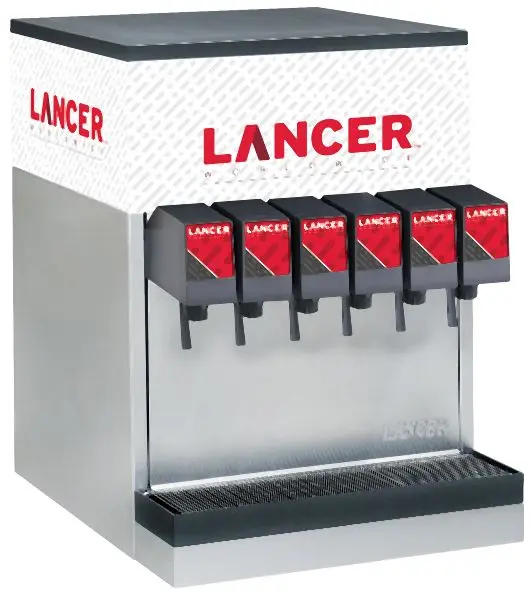

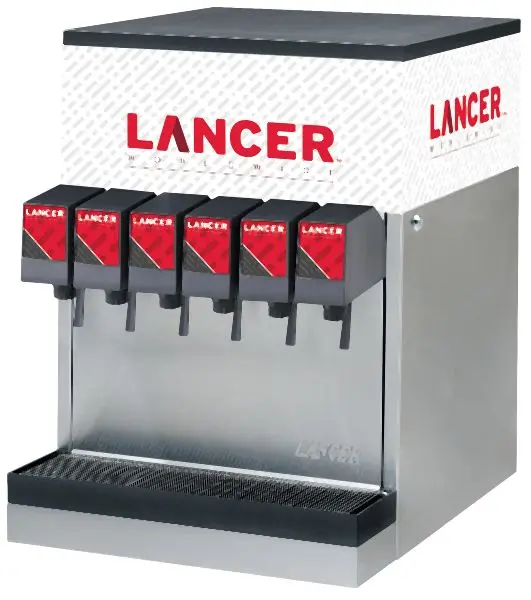

Lancer Electric Dispenser Ced 1500 High Executeance, 85-1506A-211-GB
High Executeance Counter Electric Dispenser The CED 1500 is designed using the highest quality materials and proven technology providing our customers with consistent drink quality
- Stainless steel cabinet, water bath, product lines, and splash plate; removable refrigeration deck
- Obtainable with 5 or 6 post-mix dispensing valves
- All valves can be serviced independently
- Insulation is CFC free, 0 GWP, structural foam
- All installation from front of unit
- CFC free, R134A refrigerant
- 1/3 hp compressor, 30 lb ice bank, high capacity flooded manifold
- Flex manifold configuration for multiple non carbonated drinks
Technical specs
- Height: 25.375” (645 mm)
- Width: 19.187” (487 mm)
- Depth: 24” (610 mm)
- Electrical: 115V/60Hz, 7.8 AMPs
- 230V/50Hz, 4.5 AMPs
- Weight empty: 130 lbs (59 kg)
- Operating: 230 lbs (104.3 kg)
- ice capacity: 30 lbs (13.6 kg)
- Fittings: Soda Inlets: 3/8” male barb
- Syrup Inlets: 3/8” male barb
- VALVESLEV® and other valves available upon request
- Flex manifold configuration: 5 valve 2-2-1
- 6 valve 3-2-1
- key lock switch
- COMPRESSOR1/3 hp
- Motorsa gitator: 25 w
- Condenser fan: 9 w
- Ice bank control lancer Electronic Ice Bank Control
- transformer24 V Secondary
- water capacity: 12 gal (45L)
- draw performance Number of Drinks Below 40°F
- 75°F (24°C) Ambient Temperature
- 395 drinks; 12oz / 2 drinks per minute
- 90°F (32°C) Ambient Temperature
- 200 drinks; 12oz / 2 drinks per minute
