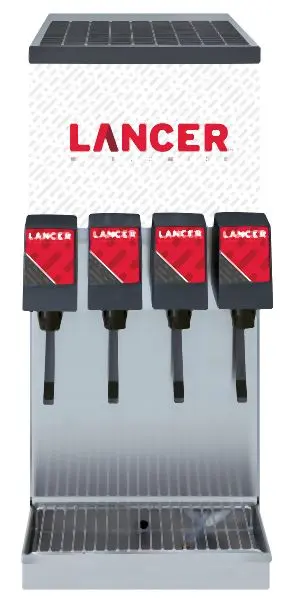

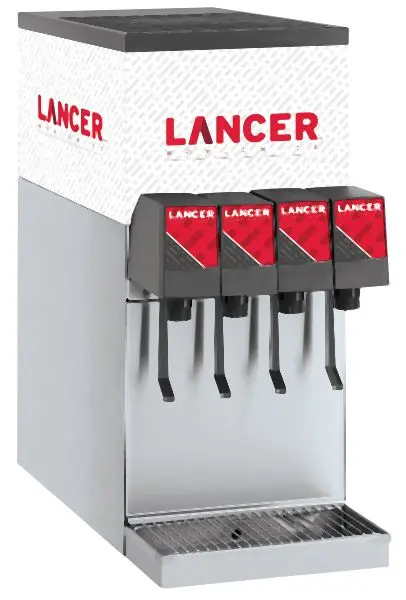

Lancer Counter Electric Dispenser Ced 500, Self-Serve Lever, 85-0504A-211-NG

Lancer Counter Electric Dispenser Ced 500, Self-Serve Lever, 85-0504A-211-NG

Counter Electric DispenserThe CED 500 is designed using the highest quality materials and proven technology providing our customers with consistent drink quality.CED 500 Counter Electric Dispenser

• Stainless steel exterior, water bath, product lines, and drip tray assembly
• Occupies a small area of counter space, only 10 3/8” wide Compare with conventional dispenser
• Obtainable with 4 post-mix dispensing valves
• All valves can be serviced independently
• Insulation is CFC-free, O GWP, structural foam
• Removable refrigeration deck, all installation from front of unit
• CFC-free, R134A refrigerant
• 1/4 hp compressor, 17 lb ice bank, high capacity flooded manifold

Technical specs

• Height: 27.5” (699 mm)
• Width: 10.375” (264 mm)
• Depth: 25.25” (641 mm)
• space required
• Height: 33.5” (851 mm)
• Width: 12.38” (315 mm)
• Depth: 31.25” (794 mm)
• Electrical: 115V/60Hz, 7 AMPs
• 230V/50Hz, 3.3 AMPs
• Weight empty: 89 lbs (40.4 kg)
• Operating: 131 lbs (59 kg)
• ice capacity: 17 lbs (7.7 kg)
• Fittings: Soda Inlets: 3/8” male barb
• Syrup Inlets: 3/8” male barb
• VALVESLEV® and other valves available upon request
• compressor 1/4 hp
• Motorsa gitator: 15 w
• Condenser Fan: 9 w
• Ice bank control lancer Electronic Ice Bank Control
• transformer24 V Secondary
• water capacity: 5 gal (19 L)
• key lock switch
• draw performance Number of Drinks Below 40°F (4.5°C)
• 75°F (24°C) Ambient Temperature
• 161 drinks; 12 oz/2 drinks per minute
