Across International Ai RapidChill 12 CF -86°C Ultra Low Freezer Upright UL 120V, G12h

Across International Ai RapidChill 12 CF -86°C Ultra Low Freezer Upright UL 120V, G12h

The Ai RapidChill series -86C ultra-low ULT freezers is designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.Attributes

• CDC and VFC compliant, great for storage of medical vaccines, DNA, RNA, virus samples, organs, and serum
• Leading-edge Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
• Secure, surroundingsally friendly, energy efficient, and simple to acquire HC refrigeration system
• Working surroundings:
  • Temperature: 10°C to 32°C (humidity<57% Rh required at 32°C)
  • Humidity:<80% Rh
  • Altitude:< 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12″ from any walls or ceiling
  • Use dedicated power, do not distribute outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT utilize freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• Remote alarm, RS-485, and choiceal 4-20 mA transmitter
• Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
• Digital temperature display with microprocessor-based temperature controller
• Dual silicon sealing ginquireets for ultra airtight operation
• 48-hour battery supportup for controller and alarm
• Extremely quiet and reliable
• Compliant to UL 61010-1 and CSA C22.2 standards

Important!

• Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• This unit is NOT designed to be utilized on a mobile platform.

Technical specs

• Model: G12h
• Electrical requirements: 120V (±10%) 60Hz 1-Phase 12A
• Power consumption: 7.5 kW/day
• Performance:
• Temperature range: -40°C to -86°C Time from ambient to -86°C: 4 hours Uniformity: ±4°C Time from -86°C to -50°C with door close (ambient 25°C): 3.5 hours

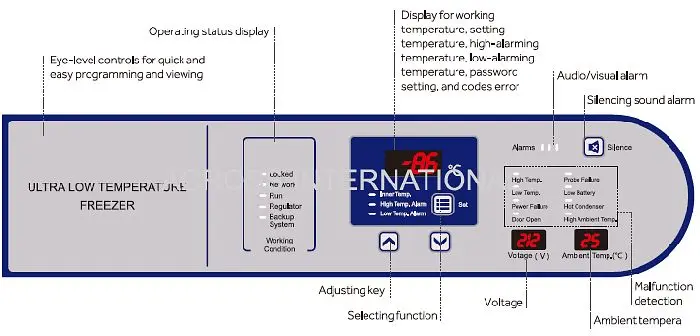

• Controller: – Style: microcomputer controlled with analog display – Range -40°C to -86°C – Step: 1°C – Thermo sensor: PT100 – Displays: internal temperature, ambient temperature, input voltage, error code – Indicators: high/low temperature/battery alarms, sensor failure, power failure, condenser failure, door open, high ambient temperature, working conditionCompressor:
• Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP x 2
• Number of compressors: two HC refrigerants: R290 (stage 1), R170 (stage 2)
• Chamber: Dimensions: 18.3 x 24.8 x 45.9″ (WxDxH)
• Material: powder coated steel
• Capacity: 12 Cu Ft Insulation: VIP (Vacuum Insulated Panel)
• Shelf: Come with unit: 3 (4 compartments), fully adjustable Dimensions: 17.8 x 23.5 (WxD) Max.
• Capacity: 110 Lbs
• Material: 304 stainless steel
• Door and gasket: Inner door: two, each with one sealing gasket External door: one with four sealing gaskets, lock-able
• Communication: Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter
• Access port: Two
• Noise level: 50 dBA
• Battery backup system: 48 hours (for controller display and alarms only)
• Unit/shipping weight & dimensions: 525 Lbs / 615 Lbs 32.7 x 35.2 x 72.7″ / 38 x 40 x 76″ (WxDxH)
• Safety: – Compressor over-temp protection – Ambient over-temp protection – Compressor power surge delay protection – Password protection – Sensor failure protection – Over-temperature and low-temperature protection – Power failure protection – Low battery, door open, condenser clogging, system failure alarms – External door with lock
• Compliance: UL 61010-1 CSA C22.2
• Warranty: 2-year full service, 3-year parts, 5-year compressor
