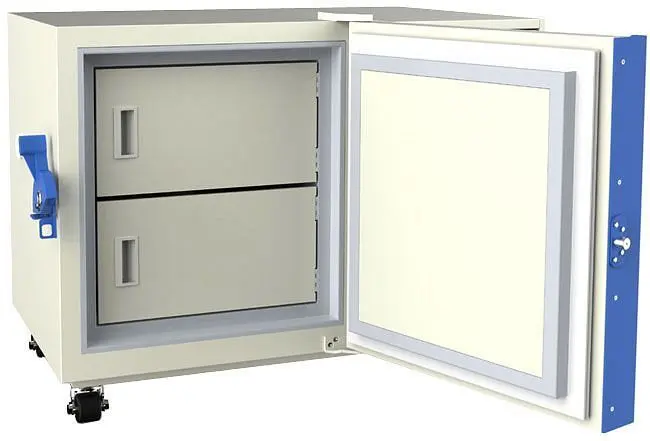

Across International Ai Glacier 4 Cu Ft -86°C Ultra-Low Upright Freezer ETL 110V, G04

Across International Ai Glacier 4 Cu Ft -86°C Ultra-Low Upright Freezer ETL 110V, G04

Working surroundings features

• Temperature: 10°C to 32°C (humidity<57% Rh required at 32°C)
• Humidity:<80% Rh
• Altitude:< 2000 m / 6561 Ft
• Stable, well-ventilated platform with no excessive dust
• Keep freezer at least 12″ from any walls or ceiling
• Use dedicated power, do not distribute outlet
• Extension power cable should be less than 10 feet is required
• Freezer and power outlet should be grounded properly
• Avoid direct sunlight, water spill and do NOT utilize freezer outdoor
• Clean condenser fins and remove frost inside chamber at least once a month
• Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

Technical specs

• Model: G04
• Electrical requirements: 110V (±10%) 60Hz 1-Phase 950 watts 8.6A
• Performance:

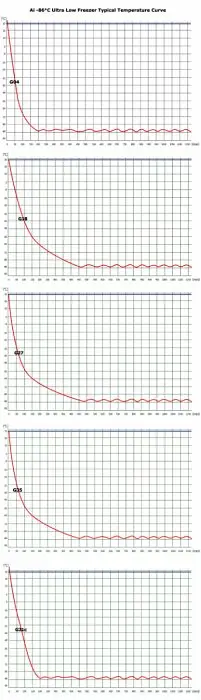

• Temperature range: -40°C to -86°C Time to reach -86°C: 4 hoursCompressor:
• Make: SECOP (formerly known as Danfoss)
• Germany Model: SC18MLX (104L2105)
• Power:115V 60Hz 1-PHASE, 1HP
• Number of compressors: one Refrigerant: Ai proprietary mixture gases
• Chamber: Dimensions: 17.75 x 19 x 20″ (WxDxH)
• Material: stainless steel Effective
• Capacity: 3.5 Cu Ft
• Date printer: Built-in, records 7 days of data
• Shelf: Come with unit: one adjustable shelf (2 compartments)
• Material: 304 stainless steel
• Capacity: 65 Lbs, evenly distributed
• Dimensions: 17.5 x 17.5″
• Door and gasket: Inner door: two, each with one sealing gasket External door: one with dual sealing gaskets, lock-able
• Access port: One, 30mm diameter
• Built-in swivel casters: Four
• Noise level: 48 dBA
• Communication: Remote alarm, RS232, 4-20 mA transmitter (optional)
• Battery backup system: 48 hours (for controller display and alarms only)
• Unit/shipping weight & dimensions: 380 Lbs / 455 Lbs 42 x 28 x 32″ / 46 x 32 x 45″ (WxDxH)
• Safety: Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock

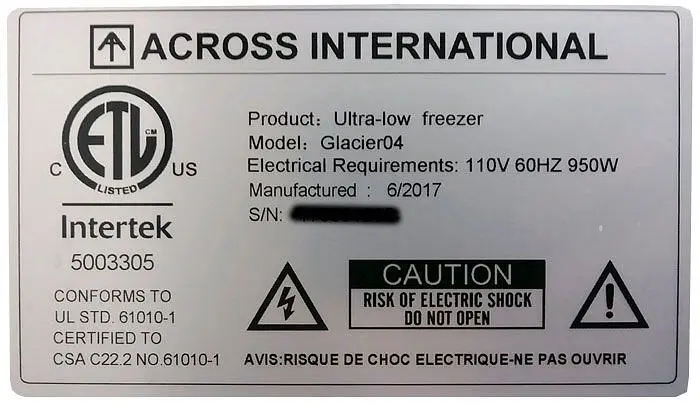

• Compliance: UL STD 61010-1 (standard) CSA C22.2 NO. 61010-1 (standard) UL STD 471 (optional)
• Warranty: One year
