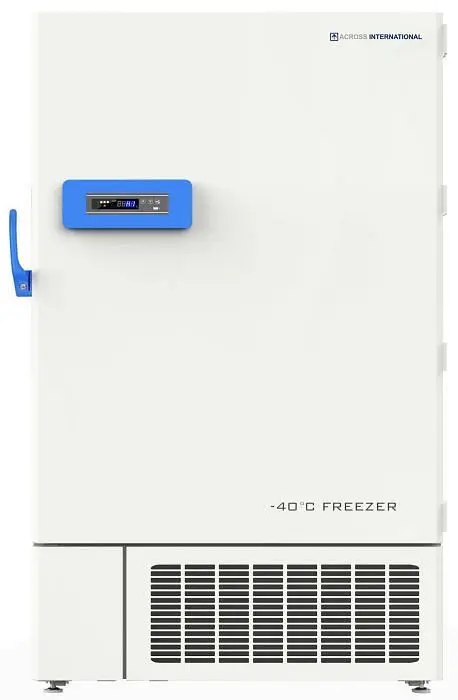

Across International Ai DeepFreeze 35 Cu Ft -40°C Upright Freezer 110V, D35.110
The Ai DeepFreeze series -40C 35 Cu Ft freezers is perfect for extra-large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Attributes
- Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
- All stainless steel interior for clean operation, durability, and ease of maintenance

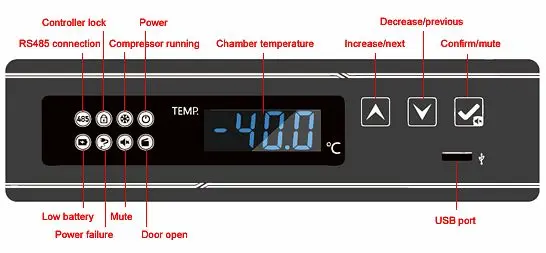

- Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Stainless steel interior for clean operation, durability, and ease of maintenance
- Dual silicon sealing ginquireets for ultra airtight operation
- 72-hour battery supportup for controller
- Constructed-in remote alarm and RS-485 port
- USB interface for data export and storage
- Extremely quiet and reliable
- Environmentally friendly refrigerant
- Use only RoSH compliant non-toxic components and materials
- Constructed-in swivel casters with adjustable back that will secure the unit on uneven floor
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be utilized on a mobile platform.
Technical specs
- Model: D35
- Electrical requirements: 110V (±10%) 60Hz 1-Phase, 1,375 watts 12.5A
- Performance:
- Temperature range: -20°C to -40°C Time to reach -40°C: 6 hours (110V)Compressor:
- Make: SECOP Number of compressor: two Style: parallel Refrigerant: R507
- Chamber: Dimensions: 40 x 27 x 54″
- Material: 304 stainless steel
- Capacity: 35 Cu Ft

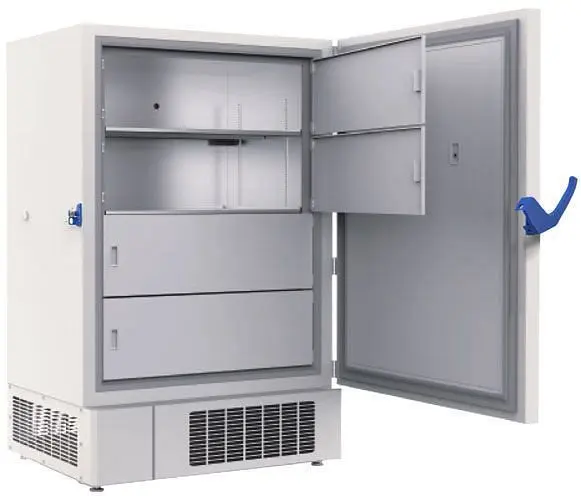

- Shelf: Come with unit: three adjustable shelves (4 compartments)
- Material: 304 stainless steel
- Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed
- Dimensions: 40 x 27″ (compatible with G35)
- Door and gasket: Inner door: four, each with one sealing gasket External door: one with dual sealing gasket, lock-able
- Working environment:
- Temperature: 16°C to 32°C
- Humidity:<80% Rh
- Altitude:< 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12″ from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- Battery backup system: 72 hours (for controller display and alarms only)
- Access port: Two, one on the side and one in the back, 1″ diameter

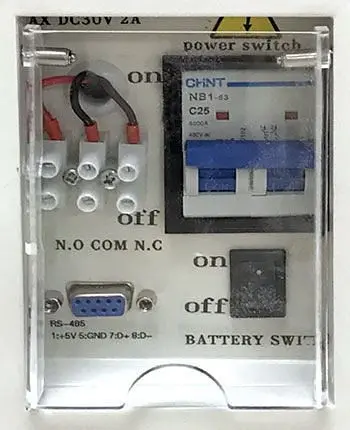

- Communication: Remote alarm 4-20mA transmitter, USB, RS-485
- Built-in swivel casters: Four, with two leveling feet
- Noise level: 52 dBA
- Unit/shipping weight & dimensions: 735 Lbs / 964 Lbs 54 x 41.5 x 78.5″ / 59 x 45 x 86″ (WxDxH)
- Safety: Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock
- Warranty: One year
