Across Diamond-Pattern International Ai RapidChill 26 CF -86°C Ultra-Low Temp Upright Freezer UL 110V, G26h

Across International Ai RapidChill 26 CF -86°C Ultra-Low Temp Upright Freezer UL 110V, G26h

The Ai RapidChill series -86C ultra-low freezers is designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

Attributes

• CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
• Leading-edge Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
• Secure, surroundingsally friendly, energy efficient, and simple-to-acquire HC refrigeration
• Working surroundings:
  • Temperature: 10°C to 32°C (humidity<57% Rh required at 32°C)
  • Humidity:<80% Rh
  • Altitude:< 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12″ from any walls or ceiling
  • Use dedicated power, do not distribute outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT utilize freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• Remote alarm, RS-485, and choiceal 4-20mA transmitter
• Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
• Digital temperature display with microprocessor-based temperature controller
• Dual silicon sealing ginquireets for ultra airtight operation
• 48-hour battery supportup for controller and alarms
• Extremely quiet and reliable
• Compliant to UL 61010-1, CSA C22.2 and Energy Star standards

Important!

• Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• This unit is NOT designed to be utilized on a mobile platform.

Technical specs

• Model: G26h
• Electrical requirements: 110V (±10%) 60Hz 1-Phase 1000 watts
• Power consumption: 10.5 kW/day, Energy Star certified
• Performance:
• Temperature range: -40°C to -86°C Time from ambient to -86°C: 5 hours Uniformity: ±4°C Time from -86°C to -50°C with door close (ambient 25°C): 5 hours 1 min door open recovery time (ambient 25°C, running temp -75°C): 30 mins

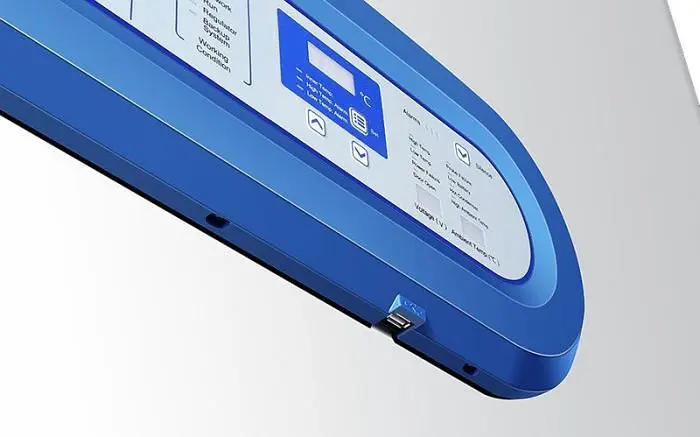

• Controller: – Style: microcomputer controlled with analog display – Range -40°C to -86°C – Step: 1°C – Thermo sensor: PT100 – Displays: internal temperature, ambient temperature, input voltage, error code – Indicators: high/low temperature/battery alarms, sensor failure, power failure, condenser failure, door open, high ambient temperature, working conditionCompressor:
• Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.85HP x 2
• Number of compressors: two HC refrigerants: R290 (stage 1), R170 (stage 2)
• Chamber: Dimensions: 30.5 x 28.2 x 51.6″ (WxDxH)
• Material: powder coated steel
• Capacity: 25.7 Cu Ft Insulation: VIP (Vacuum Insulated Panel)
• Shelf: Come with unit: 3 (4 compartments), fully adjustable Dimensions: 29.5 x 26.7 (WxD) Max. load
• Capacity: 200 Lbs
• Material: 304 stainless steel
• Door and gasket: Inner door: four, each with sealing gasket External door: one, with four sealing gaskets, lock-able
• Communication: Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter
• Access port: Two
• Noise level: 50 dBA
• Battery backup system: 48 hours (for controller display and alarms only)
• Unit/shipping weight & dimensions: 760 Lbs / 850 Lbs 41 x 38.5 x 78″ / 45 x 42 x 82″ (WxDxH)
• Safety: – Compressor over-temp protection – Ambient over-temp protection – Compressor power surge delay protection – Password protection – Sensor failure protection – Over-temperature and low-temperature protection – Power failure protection – Low battery, door open, condenser clogging, system failure alarms – External door with lock
• Compliance: UL 61010-1 CSA C22.2 Energy Star
• Warranty: 2-year full service, 3-year parts, 5-year compressor
